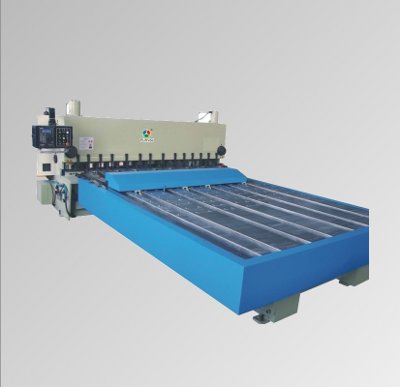

CNC Guillotine Shearing Machine



CNC Guillotine Shearing Machine

Main characteristics: CNC automatic feeding platform with alternative gauge, improve work efficiency Machine anneal treatment to eliminat internal stress Full-floating pneumatic clamp and universal ball support feeding device, to prevent the sheet from scratch Flip care feeding set, reduce sheet traction error CNC system, easy to operate. CNC control system composed of the position encoder to form closed loop control system, fast speed, high accuracy, good stability, precisely to ensure the accuracy of the gauge displacement size, the CNC system has a variety of additional features such as compensation function and automatic detection.

Technical Parameter

Item

CGS- 6x2500mm

CGS- 6x3200mm

CGS- 6x4000mm

CGS- 6x5000mm

CGS- 6x6000mm

MS cutting thickness(mm)

6

6

6

6

6

Stainless steel cutting thickness(mm)

3

3

3

3

6

Aluminium cutting thickness(mm)

7

7

7

7

6

Cutting Iength(mm)

2500

3200

4000

5000

6000

Cutting angle(°)

0.5°-2.5°

0.5°-2.5°

0.5°-2.5°

0.5°-2.5°

0.5°-2.5°

Number of holding downs

14

18

22

26

30

Main power(Kw)

7.5

7.5

7.5

7.5

7.5

Back gauge travel

1000mm

1000mm

1000mm

1000mm

1000mm

Back gauge speed

200 mm/s

200mm/s

200m m/s

200m m/s

200mm/s

Back gauge accuracy

±0.1mm

±0.1mm

±0.1mm

±0.1mm

±0.1mrn

Approx weight(kg)

5800

6600

8600

10600

12600

Dimension(mm)

3140x1610x1620

3840x1610x1620

4600x1710x1700

5500x1950x1900

6460x2100x2300

*Due to continual improvements, specification are subject to change without notice.
